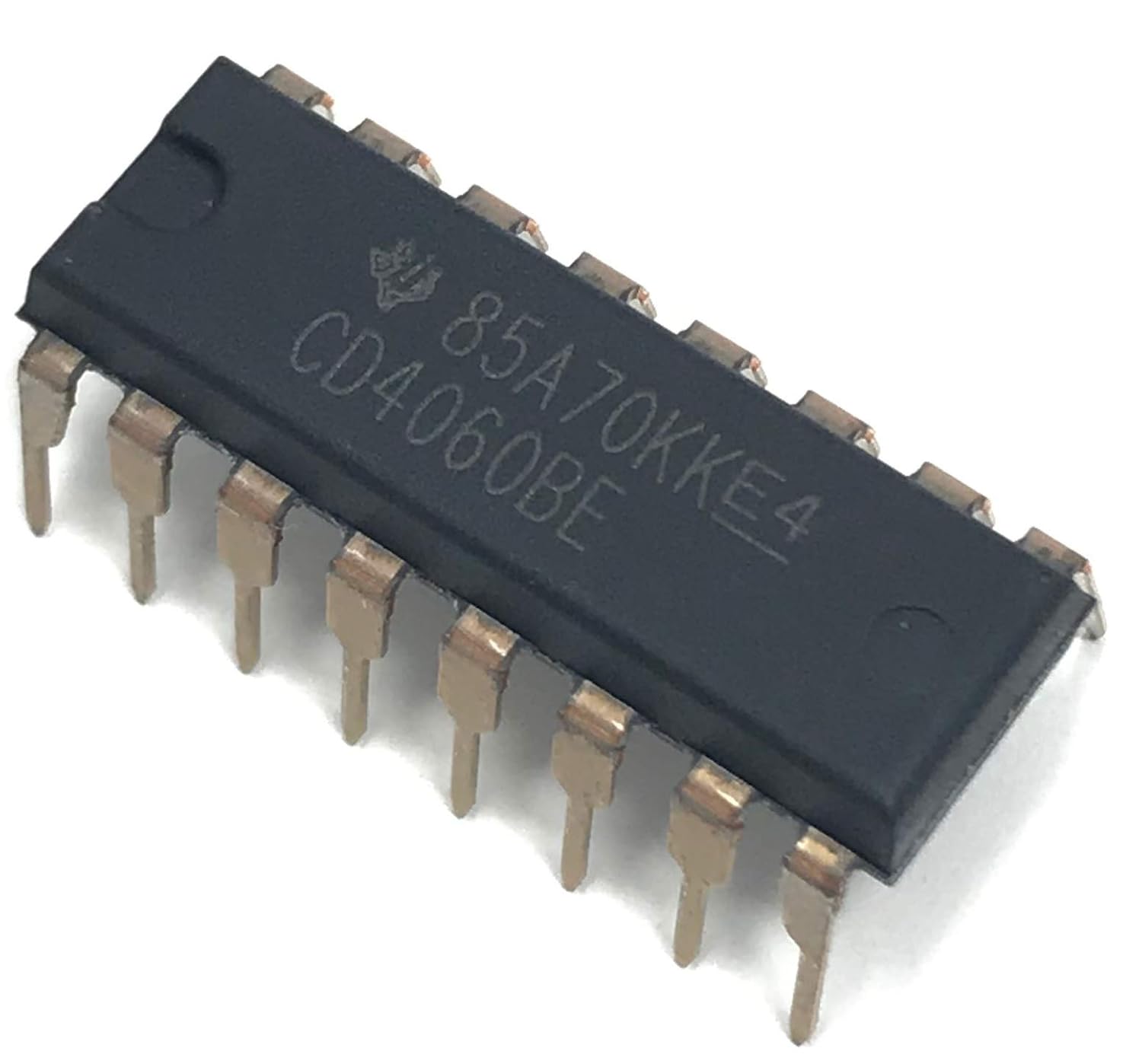

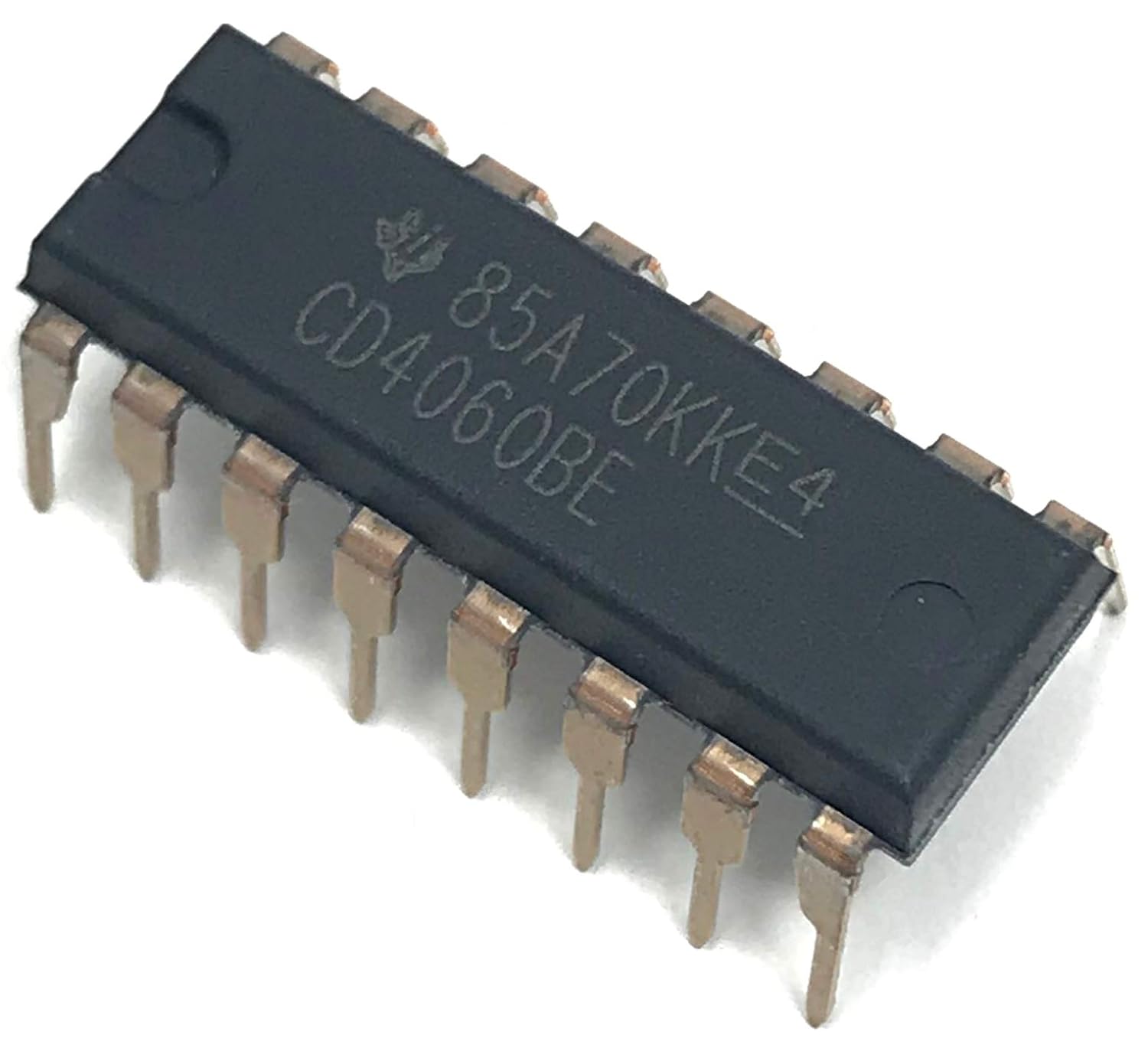

CD4060BE CD4060 CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator Breadboard-Friendly IC DIP-16 (Pack of 20)

The CD4060B consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition of O). All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times.

• 12 MHz clock rate at 15 V, Oscillator Features: All active components on chip RC or crystal oscillator configuration RC oscillator frequency of 690 kHz min. at 15 V
• Common reset, 5-V, 10-V, and 15-V parametric ratings
• Fully static operation, 100% tested for quiescent current at 20 V, Standardized, symmetrical output characteristics
• Buffered inputs and outputs, Schmitt trigger input-pulse line, Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices’
• Applications: Control counters Timers Frequency dividers Time-delay circuits
