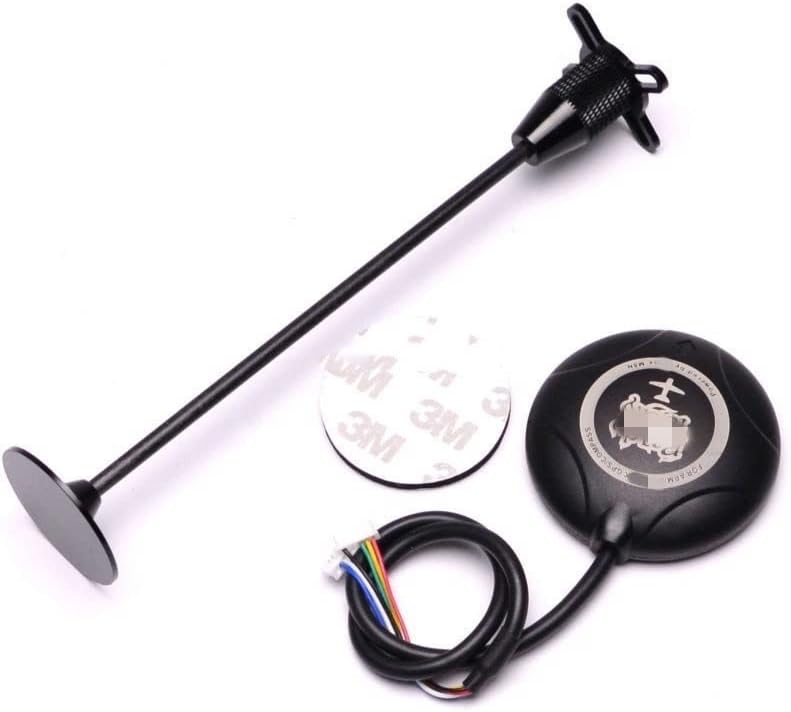

for M8N High Precision GPS Built in Compass w/Stand Holder for AMP2.6/2.8 for Pixhawk

For M8N High Precision GPS Built in Compass w/ Stand Holder for AMP2.6/ 2.8 for PixhawkFor NEO-M8N GPS ModuleGPS Chip parameters:Nav. update rate1 Single GNSS: up to 18 HZConcurrent GNSS: up to 10 HzPosition accuracy2 2.0 m CEPSensitivity2 Tracking & Nav 167 dBmCold starts 148 dBmHot starts: 156 dBmAssistance AssistNow GNSS OnlineAssistNow GNSS Offline (up to 35 days)3AssistNow Autonomous (up to 6 days)For OMA SUPL & for 3GPP compliantFor Oscillator for TCXO for M8NQ),Crystal (M8M)For RTC crystal Built-InNoise figure On-chip for LNA (for M8M). Extra for LNA forlowest noise figure ( for M8N/Q)Anti jamming Active CW detection and removal. Extraonboard for SAW band pass filter (for M8N/Q)Supported antennas Active and passiveOdometer Travelled distanceData-logger For position, velocity, and time ( for M8N)Operating temp. 40° C to 85° CStorage temp. 40° C to 85° C (for M8N/Q)40° C to 105° C (-M8M)For RoHS compliant (lead-free)Qualification according to ISO 16750Manufactured and fully tested in ISO/TS 16949 certified production sitesUses M8 chips qualified according to for AEC-Q100Supply voltage 1.65 V to 3.6 V (for M8M)2.7 V to 3.6 V (for M8N/Q)Power consumption4 23 mA @ 3.0 V (continuous)5 mA @ 3.0 V Power Save Mode(1 Hz, GPS mode only)Backup Supply 1.4 to 3.6 V- 1 x for M8N GPS Module with Shell- 1x BlackGps Holder

• A new generation GPS M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation 7N 1.4-1.6 meters accuracy,support for GPS/ for QZSS L1 C/A, for GLONASS L10F, for BeiDou B1 protocol and mode or more.
• Receiver type 72-channel u-blox M8 engine
• For GPS/ for QZSS L1 C/A, for GLONASS L10F, for BeiDou B1
• For SBAS L1 C/A: for WAAS, for EGNOS, for MSAS
• Galileo-ready E1B/C (for M8N)
