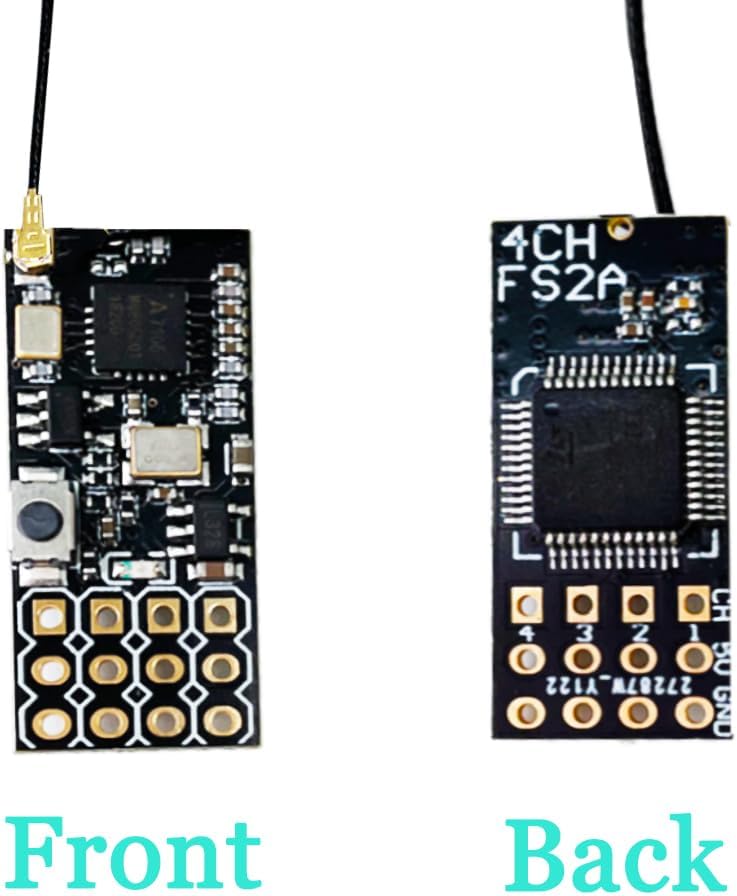

FS-2A Receiver 4CH AFHDS 2A Mini RC Receiver PWM Output Compatible with Flysky i6 i6X i6S RC Transmitter

FS-2A Receiver 4CH AFHDS 2A Mini RC Receiver PWM Output Compatible with Flysky i6 i6X i6S RC TransmitterDescription:Item name:FS-2A 4CH ReceiverChannels: 4CHOutput signal: PWMFrequency range: 2.408-2.475 GHZBand width: 135Receiver sensitivity: -92DBM2.4G mode: AFHDS 2AFailfe: YesSupply voltage: 3.3-10 VDistance: 400 + metersWorking current: 20MASize: 11 * 25 MMWeight: 0.9 gramsSupport: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmittersPackage Included:1x FS-2A 4CH ReceiverBind:1.Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.2.Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.3.Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.Failsafe settings:The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

• Product Name: FS-2A Receiver 4CH AFHDS 2A Mini RC Receiver
• Support for : FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol rc transmitter
• Frequency range: 2.408-2.475 GHZ; 2.4G mode: AFHDS 2A; Size: 11 * 25 MM
• The Receiver Can Normally Receive The Transmitter Signal, Push The Rocker To The The Failsafe Set, Long Press The Receiver Bind Button, The Blue Light Flashes Quickly Several Times And Then Always Bright , Failsafe Settings Is Successful
